Cascadia 0.1

This first devlog concludes the test phase of Cascadia, my survival * I know there isn’t any survival mechanics yet, but those will come soon! sandbox game!

Download Pre-Alpha 0.1 and give it a try

Features#

---

Cascadia’s test phase of development spanned from September 21st to November 3rd, with a 3 week break between October 1st and October 23rd due to college. (If you’re bad at math, that’s 21 days!)

It saw a few architectural changes before settling on a bespoke game engine written in Rust, using winit for window creation and input handling and wgpu for graphics.

So let’s take a trip down memory lane, shall we?

Pre-wgpu#

Not knowing where to start, Kett recommended that I try raylib, a C library for game programming. I found a binding for Rust and made this simple test scene using raylib’s built-in draw functions.

I then figured out how to texture those cubes!

But I was having a lot of trouble trying to figure out what the Rust bindings for raylib were. Raylib has plenty of examples on their website, but they were only for C. So I gave up and switched to Bevy, a data-driven game engine built in Rust.

Bevy uses an Entity Component System (ECS) pattern where entities are blank slates that you attach components to and process with systems. It’s a pretty novel idea to me, and it seems to be quite popular in Rust and gaining traction outside of it too.

But Bevy’s ham-fisted approach to treating everything as an ECS—including UI—just rubbed me the wrong way. I needed to find something better.

Seeing that Bevy used wgpu for its graphics, a low-level cross-platform graphics API, I found a wgpu tutorial for creating a render pipeline from scratch. For the next 3 days I poured hours reading, learning, and writing low-level graphics.

I really hoped this would be worth the effort.

wgpu#

I was quite exhilarated with what I had made, my very own render pipeline! From scratch! Without using a game engine!

But the future still felt uncertain to me as I didn’t know how much steam I would have to continue working at such a low level, nor if I would be able to find enough resources and tutorials online to know what to do next.

And count my lucky stars, because I found a different tutorial that cleaned up and expanded upon the previous wgpu tutorial! (Which left me with a monolithic file with nearly a thousand lines of code)

With a much more readable source code, I felt invigorated to continue toiling away and implemented raycasting, allowing me to place and break blocks for the first time!

I was still rendering individually instanced cubes which wasn’t going to work in the long-term, so I got to work on mesh generation. Here is the very first mesh I generated.

I then rendered square faces proper…

…culled hidden faces…

…and added the rest of the faces! This is a view from inside the mesh.

Vertex data#

Soon after I integrated texture array support into the render pipeline and rendered grass!

I wanted to use texture arrays instead of a texture sheet because it would be easier to set up. Instead of calculating the correct UVs for a given texture, I just pass a texture index to the shader.

With this index-first approach, I could even make animated textures super easy to implement in the future.

And with my newfound knowledge of the render pipeline and the vertex buffer data, I added lighting data to the vertices to give blocks some contrast lighting.

Adding shadows was pretty easy too using the same vertex light data queried from a light array I added to the chunk.

Chunks#

The next step was to have more than one chunk. This was going to have a few challenges, namely getting lighting to work properly across chunks, and to cull the faces of blocks between chunks, but for now I put those problems off for later.

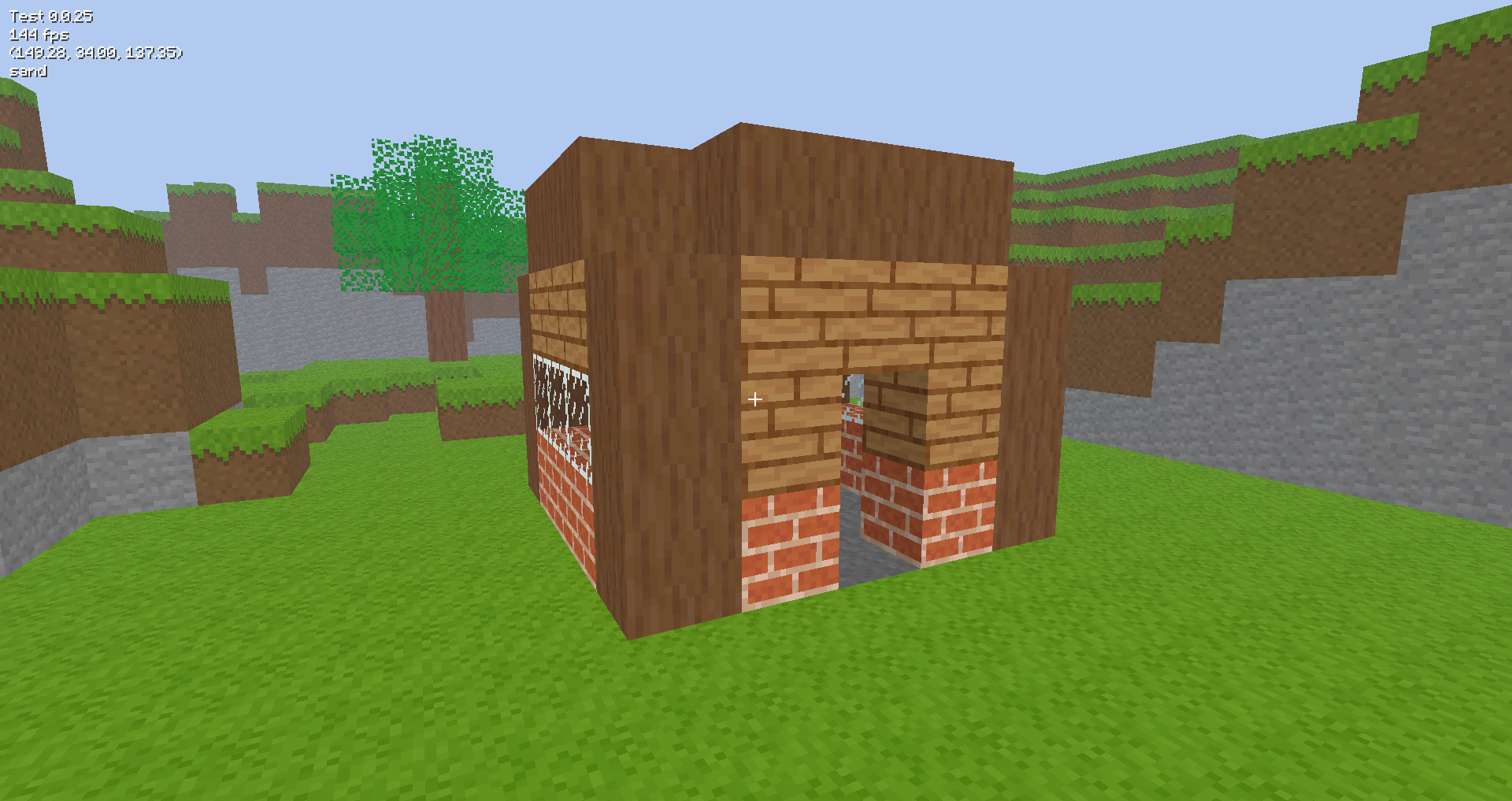

With the ability to place different blocks now, I made the first dirt house in Cascadia.

I then added some new blocks that needed their own rendering code. Glass and leaves are both transparent, but leaves fully render to neighboring leaves for a neat layering effect. Logs were the first block to use multiple textures.

Here’s a gratuity shot of 64,000 chunks being rendered at once :3

Although I don’t have footage of it, this test version marked the inclusion of the first iteration of physics! (Which unbeknownst to me would haunt me for a week as I pulled my hair out trying to fix numerous collision bugs)

Terrain generation#

Here’s the first version with naturally generated trees! Yeah they’re pretty silly looking.

Lighting has returned along with some new terrain generation!

I sprited a new font for Cascadia, and using a distance fog * The fog is coming the fog is coming the fog is coming tutorial meant for glsl shaders, I was able to translate it into wgsl, the shading language that wgpu uses.

Another terrain generation change to include more varied terrain such as cliffs.

And finally, I vanquished the last collision bug. There were few edge cases where you could phase through the edge of a block, and this video was me testing those.

Postmortem#

Whew, that was a lot of progress in a short span of time! And in that time I learned a lot, from programming in Rust (gotta love that borrow checker) to writing low-level graphics with wgpu.

I’m genuinely thrilled with what I have made so far, and I’m excited to continue working on Cascadia to make it my dream game!
